With the BB30 you can quickly and precisely determine the thickness of non-magnetic coatings such as paints, varnishes, plastic coatings, zinc coatings, enamellings or chrome plating both on ferromagnetic and non-ferromagnetic metals.
The sensitive dual sensor is just as precise on iron and steel as it is on non-ferrous metals like aluminium, magnesium or titanium.
The spring-loaded measuring head comes with a practical V-groove. This, on the one hand, simplifies measurements on round objects, e.g. axles or hinges, on the other hand, the results are not influenced by vibrations.

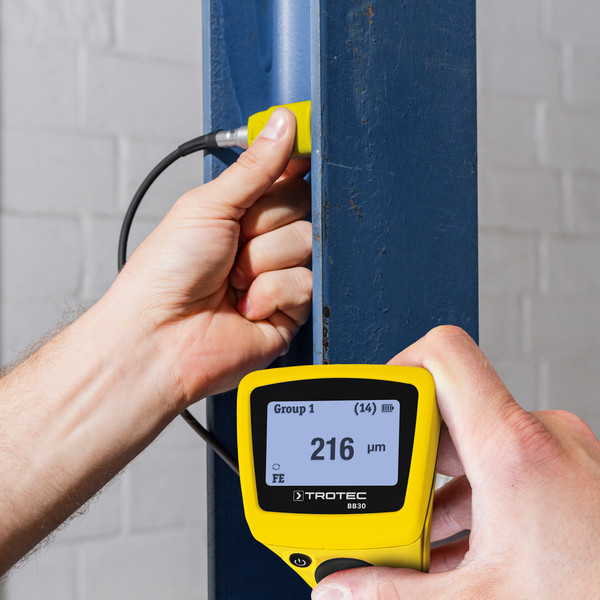

Regardless of whether you operate the layer thickness measuring device conveniently with one hand only or use the flexible probe extension supplied in the scope of delivery for measuring at poorly accessible locations – the BB30 always yields precise measuring results in range between 0 and 2,000 µm. Stored measured values and groups can be called up directly at the device if required. Furthermore, the data transfer is effected via Bluetooth – simple and wireless.
Regardless of whether for use in the automobile sector, for layer thickness measurements of handrail and ship's paint or for checking enamellings – the BB30 is the ideal hand-held measuring device for pros in this and other fields.
Layer thickness measurement:
Functional principle: Magnetic induction, Turbulent flow
Material: Ferromagnetic ground, Non-ferrous metal ground
Min. measuring range [µm]: 0
Max. measuring range [µm]: 2,000
Accuracy
- ±0.1 µm (at 0 µm up to 100 µm)
- ±1 µm (at 100 µm up to 1,000 µm)
- ±0.01 mm (at 1,000 µm up to 2,000 µm)
Tolerance Guaranteed tolerance with non-ferrous metal ground in the measuring range from 0 to 1,000 µm: (±2 % + 2) µm of measured value
Tolerance Guaranteed tolerance with non-ferrous metal ground in the measuring range from 1,000 to 2,000 µm: ±3.5 % µm of measured value
Tolerance Guaranteed tolerance with ferromagnetic ground in the measuring range from 0 to 1,000 µm: (±2 % + 2) µm of measured value
Tolerance Guaranteed tolerance with ferromagnetic ground in the measuring range from 1,000 to 2,000 µm: ±3.5 % µm of measured value
Minimum measuring surface with non-ferrous metal ground: Ø 5 mm
Minimum bending radius with non-ferrous metal ground: 3 mm
Critical primary layer thickness of non-ferrous metal ground: 0.3 µm
Minimum measuring surface with ferromagnetic ground: Ø 7 mm
Minimum bending radius of the measuring surface with ferromagnetic ground: 1.5 mm
Critical primary layer thickness of ferromagnetic ground: 0.5 µm
Memory organisation: Internal flash memory, up to 2,500 measured values, recall of previous measurements
Display: LCD, Monochrome
Device control: Push buttons
Surrounding conditions:
- Operation - min. temperature [°C]: 0
- Operation - max. temperature [°C]: 40
- Operation – min. relative humidity [% RH]: 20
- Operation - max. relative humidity [% RH]: 90
Dimensions:
- Length (packaging excluded) [mm] 114
- Width (packaging excluded) [mm] 27
- Height (packaging excluded) [mm] 54
Weight (packaging excluded) [kg]: 0.152
Kit Includes:
- Measuring device
- Battery(-ies)
- Transport case
- Calibration accessories
- Probe cable extension
- Operating manual
Internal sensors: Layer thickness [µm]
External sensors:
- Minimum value display
- Maximum value display
- Average value display
- Automatic switch-off
- Backlit display
- Sensor for ferromagnetic ground
- Sensor for non-ferrous metal ground
- Error indicator for incorrect measuring
- Bluetooth
- Battery status indication
